Inbuilt Lithium Battery MPPT Solar Inverter 1kW
Regular price
₹39,999.00
₹34,999.00
|
You Save
₹5,000.00
(13%)
0 sold in last 24 hoursLuxntek 1kW Inbuilt Lithium Battery MPPT Solar Inverter is an advanced solar power solution featuring a 60A MPPT charge controller and up to 140V solar input. Designed for efficient solar energy utilization, it provides pure sine wave AC output and combines solar charging, battery backup and inverter functionality in one compact system.
1kW Inbuilt Lithium Battery MPPT Solar Inverter
The Luxntek 1kW Inbuilt Lithium Battery MPPT Solar Inverter is a compact solar power solution designed for homes and small backup-power applications. It combines an inverter, solar MPPT charge controller and lithium battery system into a single integrated unit.
With a 60A MPPT solar charge controller and up to 140V solar input, the inverter can efficiently utilize available solar power while providing reliable backup through its integrated lithium battery.
Key Features
- 1kW solar inverter capacity
- Inbuilt lithium battery
- 60A MPPT solar charge controller
- High PV input up to 140V
- Pure sine wave AC output
- Integrated solar charging and battery backup
- Compact integrated solar power solution
- Suitable for home and small backup applications
- Designed for efficient solar energy utilization
- Made in India
Why Choose a 1kW MPPT Solar Inverter?
An MPPT solar inverter continuously tracks the solar panel's operating point to make better use of available solar energy compared with basic PWM-based charging systems.
The 60A MPPT charge controller provides the solar charging section of this inverter, while the integrated lithium battery provides energy storage for backup power when solar generation is unavailable.
The result is an integrated system that reduces the need for separate inverter, solar charge controller and battery-management components.
Inbuilt Lithium Battery
The integrated lithium battery makes this solar inverter a convenient solution for users looking for a compact backup system without installing a separate external battery bank.
This makes the system particularly useful where space, installation simplicity and backup power are important considerations.
140V High Solar Input
The inverter supports solar PV input up to 140V, providing greater flexibility when configuring compatible solar panels.
The high-voltage MPPT input can help simplify solar-array configuration while allowing the MPPT controller to extract available power efficiently.
60A MPPT Solar Charge Controller
The built-in 60A MPPT charge controller manages solar charging and tracks the solar panel operating point to make effective use of available PV power.
This makes the product suitable for users searching for:
- 1kW MPPT solar inverter
- 60A MPPT solar inverter
- 140V solar inverter
- Solar PCU with lithium battery
- Solar inverter with inbuilt battery
- Home solar backup inverter
Pure Sine Wave Output
The inverter provides pure sine wave AC output, making it suitable for powering compatible household electrical and electronic loads that require a clean AC waveform.
Applications
The 1kW inbuilt lithium battery MPPT solar inverter can be considered for:
- Home solar backup
- Small residential power backup
- Solar lighting systems
- Fans and lighting
- Computers and networking equipment
- Small electronic appliances
- Solar energy storage applications
- Backup power systems
Always select the system according to the actual connected load, battery specifications and solar-panel configuration.
No reviews yet. Be the first to review.
- 1.25KVA / 1000W Output Capacity
- 12.8V / 100Ah Inbuilt Lithium LiFePo4 Battery
- Built-in 60A MPPT Solar Charge Controller
- Supports Solar PV Input up to 140V Voc
- DSP-Based Pure Sine Wave Technology
- Pure Copper Transformer for High Efficiency
- MPPT Tracking Efficiency up to 99%
- Cooling Fans for Better Thermal Management
- Fast Solar Charging with Intelligent Battery Management
- Overload, Short Circuit and Reverse Polarity Protection
- Designed & Manufactured in India
- 0.4A Low No-Load Consumption
| Inverter Mode | |
| Transformer Type | 100% Pure Copper Transformer |
| Output Waveform | DSP Based Pure Sine Wave |
| Continuous Output Power | 1000W |
| Output Voltage | 220V AC±5% |
| Output Frequency | 50 Hz ± 0.3% |
| Grid Charging Current | 15A |
| Nominal Efficiency | > 90% |
| Input MCB | 16A |
| No Load Current | 0.4A |
| Protection | Short-Circuit , Overload ,Low Battery |
| Battery Specifications | |
| System Voltage | 12.8V DC |
| Battery Rating | 100Ah |
| Battery Capacity | 1280 Wh |
| Battery Types | LiFePO4 Lithium-Ion Battery |
| Solar Charging Mode | |
| Charge Controller Type | MPPT |
| Maximum Solar Power | 1200W |
| MPPT Current Rating | 60A ( Configurable ) |
| MPPT Voltage Range | 30V - 140V DC |
| Max. Voc PV Open Circuit Voltage | 140V DC |
| Max MPPT Efficiency | 99 % |

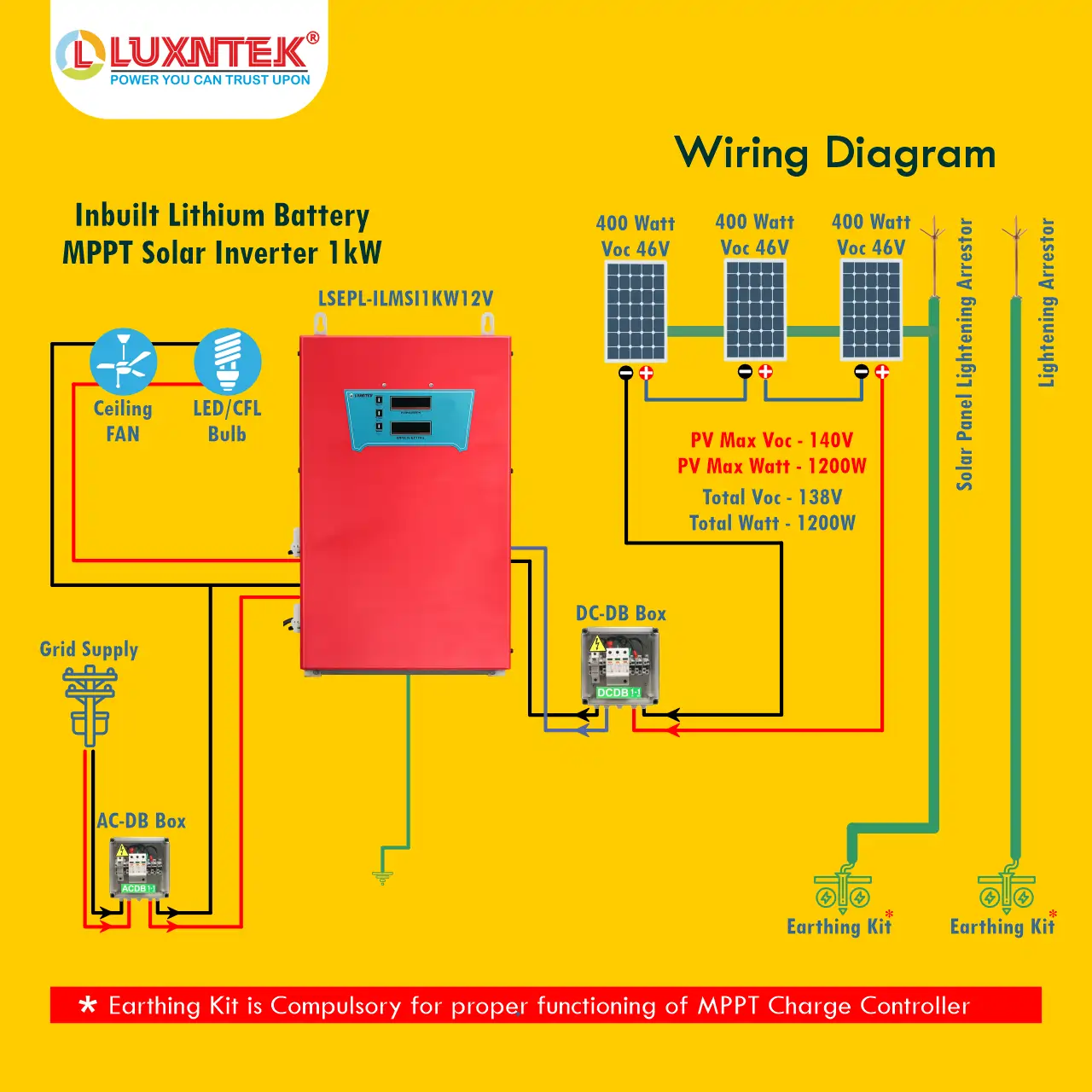

| Recommended Panel Configuration | 3 × 400W Panels in Series ( Example 46V Panel Voc - Total Voc-138V DC / Total Watt - 1200W ) |
| Protection Features | |
| Inverter | Low Battery, Overload, Short-Circuit, Over Temperature |
| MPPT Charge Controller | PV Reverse Polarity, PV Over Voltage, Overload, Short-Ciruit, Over Temperature, Lightning, Battery Reverse Polarity |
| Display | |
| Inverter | 2 Line LCD Display |
| Parameters | Ac Input Voltage, AC output Voltage, System On, Temperature, Output Load, Battery Voltage, Low Battery, Overload, Short-Circuit |
| MPPT | 2 Line LCD Display |
| Parameters | PV Voltage, Battery Voltage, PV Current , battery Current, PV Watt, Battery Watt, Battery Type, System Voltage, Bypass Mode, MPPT Status, Charging Mode, Temperature, Energy Generated |
| Mechanical | |
| Product Dimensions ( L x B x H ) | 15 x 33.5 x 56.5 cm |
| Package Dimensions ( L x B x H ) | 22.5 x 41 x 64 cm |
| Operating Temperature | -15 to 45°C |
| Storage Temperature | -20 to 80°C |
| Humidity | 5% to 95% |
| Net Weight / Gross Weight | 30.0 Kgs / 32.0 Kgs |
